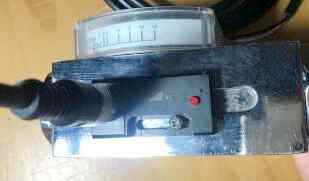

GE-344指针型流量开关 耐高压

GE-344指针型流量开关可测量高粘度流体，加厚不锈钢壳体可耐压200公斤。多种螺纹规格可选，可定制法兰连接型。香港艾伊特公司生产制造，独家经销，价格便宜。

* 壳体材料: 304不锈钢
* 管径: 1/4" DN8; 3/8" DN10; 1/2" DN15; 3/4" DN20; 1" DN25
* 流量范围: 0.4L/min ~ 4.0L/min; 1.0L/min ~ 10L/min; 3.0L/min~30L/min
* 误差: -/+5% of full scale
* 输出信号:  reed switch 24VDC/250VAC 100mA
* 耐压等级:  200bar
* 介质温度:  -30C ~ +90C
* 防护等级: IP65 (IP67 available)

可提供防爆型产品, ExiaIICT6.

产品型号:
GE-344 MR1KO-008G : DN8 0.4L/min ~ 4.0L/min; 1.0L/min ~ 10L/min;

GE-344 MR1KO-010G : DN10 0.4L/min ~ 4.0L/min; 1.0L/min ~ 10L/min;

GE-344 MR1KO-015G : DN15 0.4L/min ~ 4.0L/min; 2.0L/min ~ 12L/min; 5.0L/min~30L/min

GE-344 MR1KO-020G : DN20 2.0L/min ~ 12L/min; 5.0L/min~30L/min

GE-344 MR1KO-025G : DN25 2.0L/min ~ 10L/min; 5.0L/min~30L/min

本产品可替代以下产品:

VKM-1101 VKM-1102  VKM-1103 VKM-1104 VKM-1105 VKM-1106 VKM-1107 VKM-1108 VKM-1109 VKM-1110 VKM-1111 VKM-1112

VKM-1201 VKM-1202  VKM-1203 VKM-1204 VKM-1205 VKM-1206 VKM-1207 VKM-1208 VKM-1209 VKM-1210 VKM-1211 VKM-1212


VKM-2101 VKM-2102  VKM-2103 VKM-2104 VKM-2105 VKM-2106 VKM-2107 VKM-2108 VKM-2109 VKM-2110 VKM-2111 VKM-2112

VKM-2201 VKM-2202  VKM-2203 VKM-2204 VKM-2205 VKM-2206 VKM-2207 VKM-2208 VKM-2209 VKM-2210 VKM-2211 VKM-2212

VKM-3101 VKM-3102  VKM-3103 VKM-3104 VKM-3105 VKM-3106 VKM-3107 VKM-3108 VKM-3109 VKM-3110 VKM-3111 VKM-3112

VKM-3201 VKM-3202  VKM-3203 VKM-3204 VKM-3205 VKM-3206 VKM-3207 VKM-3208 VKM-3209 VKM-3210 VKM-3211 VKM-3212

VKM-8101 VKM-8102  VKM-8103 VKM-8104 VKM-8105 VKM-8106 VKM-8107 VKM-8108 VKM-8109 VKM-8110 VKM-8111 VKM-8112

VKM-8201 VKM-8202  VKM-8203 VKM-8204 VKM-8205 VKM-8206 VKM-8207 VKM-8208 VKM-8209 VKM-8210 VKM-8211 VKM-8212
